產品描述：
豪華型平板制動檢驗臺是在模擬實際平坦道路的平板上，汽車以一定的速度行駛，實施制動后一次完成動態測定汽車制動力、軸重、測滑、懸架等項目的汽車檢測設備。豪華型平板制動臺的制動臺板使用粘沙技術，更加能夠模擬地面的實際情況，測試更為精準?？蛇m用于檢測機構、修理廠、汽車制造廠、研究機構等
◆可以直接地面安裝，也可以選擇挖地基安裝，占地面積小、安裝調試使用方便
◆不需380V動力電源，運行成本低，節能，節約投資
◆平板制動臺的板塊結構可通過多種組合以適合檢測各種軸距之車型
◆平板制動臺的板塊的設計和工藝以及制造，符合最新國家標準GB21861和GB7258的規定
◆進口技術高精傳感器，響應極快，測試快捷精確。
◆機動車在板上制動，模擬技術更接近實際路面情況，測試效果更真實可靠
◆系統配多種聯機接口，可配前照燈檢測儀及尾氣分析儀等以組成多功能綜合性能檢測線
◆全自動工作方式
技術參數Technical parameters

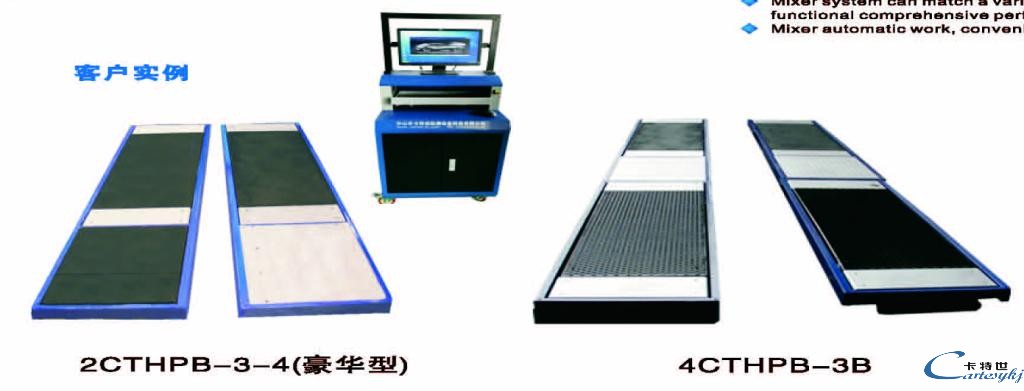

| Model型號 | 2CTHPB-3-4 | 4CTHPB-3B | 2CTHPB-10 | CTHPB-10B | CTHPB-10C |
| Max. Allowed Axle Weight最大載荷質量 | 3000 | 3000 | 10000 | 10000 | 13000 |
| Test Range of Brake Force制動力測量范圍（N） | 10 | 10 | 35 | 35 | 45 |
| Test Range of Sideslip Force側滑力測量范圍（N） | 0-±15 | 0-±15 | 0-±15 | N/A | N/A |
| Indication Error of Braking Force制動力示值誤差 | ≤±3% | ≤±3% | ≤±3% | ≤±3% | ≤±3% |
| Test Precision of Sideslip側滑測試精度（m/km） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Indication Error of Axle Weight軸重示值誤差 | ≤±2% | ≤±2% | ≤±2% | ≤±2% | ≤±2% |
| Size of the Weighing Plate稱重板尺寸 | 650*1500（寬*長）（Width*Length） | 650*1500（寬*長）（Width*Length） | 1000*1800（寬*長）（Width*Length） | 1000*2500（寬*長）（Width*Length） | 1000*3500（寬*長）（Width*Length） |
| Combination組合方式 | 2板plates | 4板plates | 4板plates or 2板plates | 4板plates or 2板plates | 4板plates or 2板plates |
| Test Speed檢測車速（km/h） | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 |
| Power Supply電源 | 220v 300w | 220v 300w | 220v 300w | 220v 300w | 220v 300w |
| Dimension（Length*Width*Height）外型尺寸（長*寬*高） | 2790*746*80 | 4730*746*80 | 3140*1112*100 | 3150*1112*100 | 4150*1112*100 |
Product description:

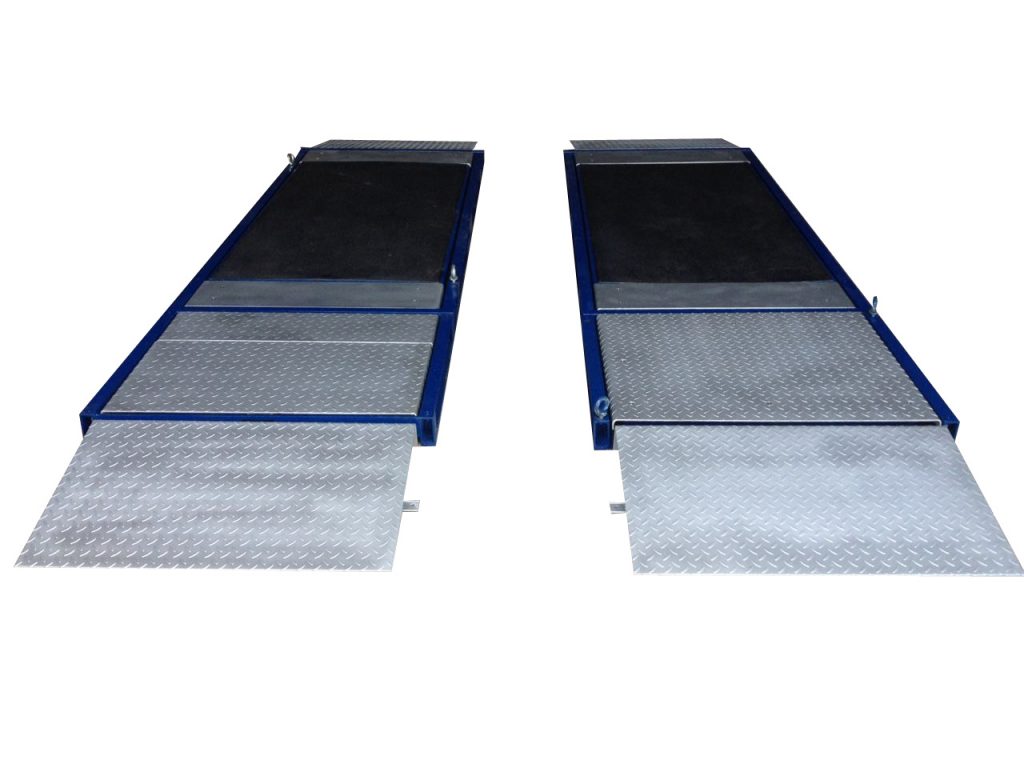

The luxury flat brake tester is a car testing equipment that simulates the actual flat road. The car runs at a certain speed. After the brake is applied, the car's braking force, axle load, sideslip suspension and other items are dynamically tested. The brake plates of the luxury flat brake tester use sand sticking technology, which can more accurately simulate the actual situation on the ground and make the test more accurate. Applicable to testing institutions, repair shops, automobile manufacturers, research institutions, etc.
◆It can be directly installed on the ground, or it can be installed by digging the foundation. It covers a small area and is easy to install and debug.
◆No need for 380 v power supply, low operating cost, saving energy, saving investment
◆The plate structure of plate brake tester can be combined in many ways to be suitable for vehicle types with various wheelbases
◆The design, process and manufacture of the plate of the flat brake tester comply with the latest national standards GB21861 and GB7258
◆With imported high-precision sensor, fast response, and accurate test.
◆Motor vehicle braking on board, the simulation technology is closer to the actual road conditions, and the test result is more real and reliable
◆System with a variety of online interface, can match headlight tester and the gas analyzer to form such as multi-functional integrated performance test line,
◆Fully automatic operation system
