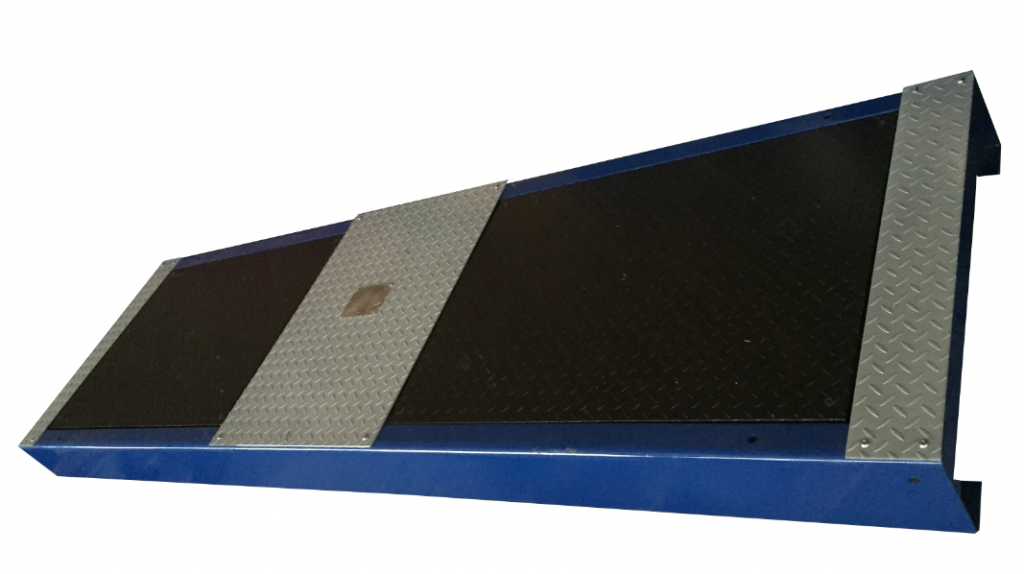

汽車軸（輪）重檢測臺是用于分別測量機動車輛前后軸載荷分布情況的稱重儀器。即用于測定汽車各輪的垂直載荷。
主要性能特點：
- 機體采用整體焊接，強度高，堅固耐用，
- 安裝無需地腳螺栓，安裝調試方便快捷
- 分體式結構，計量穩(wěn)定
- 可測定汽車輪質量、軸載質量和整車質量
- 采用優(yōu)質名牌高精度應變式傳感器，測試精度高
- 配置低速通過式測量機構，檢測效率極高
技術參數Technical parameters
| 型號Model | CTZZ-3 | CTZZ-10 | CTZZ-15 |
| 最大允許軸載質量（kg） Max. passing axle load (kg) | 3000 | 10000 | 15000 |
| 輪荷的測量范圍（kg） Measuring range of wheel load (kg) | 0-1500 | 0-5000 | 0-7500 |
| 承載臺尺寸 Weighing plate dimensions | 800*500 | 1000*800 | 1100*800 |
| 輪距（內寬/外寬）（mm） Tread(inside/outside)mm | 700/2400 | 700/2700 | 700/2900 |
| 外型尺寸（mm） Installation dimensions (mm) | 2700×660×200 | 3000×960×220 | 3000×960×220 |
?Vehicle Axle (Wheel) Load Tester is to measure the wheel load of a vehicle, the measured weighing value is an important factor for calculation of the brake efficiency
Main features:
- Extra-strong structure boby. The body is welded as a whole with high strength and durability,
- No anchor bolt is required for installation, so it is convenient and quick for installation and debugging
- Anti-slanting weighting design. Accurate and stable measure
- It can measure the wheel mass, axle load mass and vehicle mass
- High quality brand-name high-precision strain type sensor, high test accuracy
- Quick drive-through testing mode ,which can make the detection efficiency extremely high
